Battery Plate with fixed Cable, B-Mount

Battery Plate with fixed Cable, B-Mount

This compact battery plate can be used to operate a wide variety of devices reliably and safely with the B-Mount battery detached. Even though smaller batteries in the 45-150Wh range are suitable for handheld camera applications, 290Wh batteries fit our B-mount plates and are easy to carry, especially with additional padding.

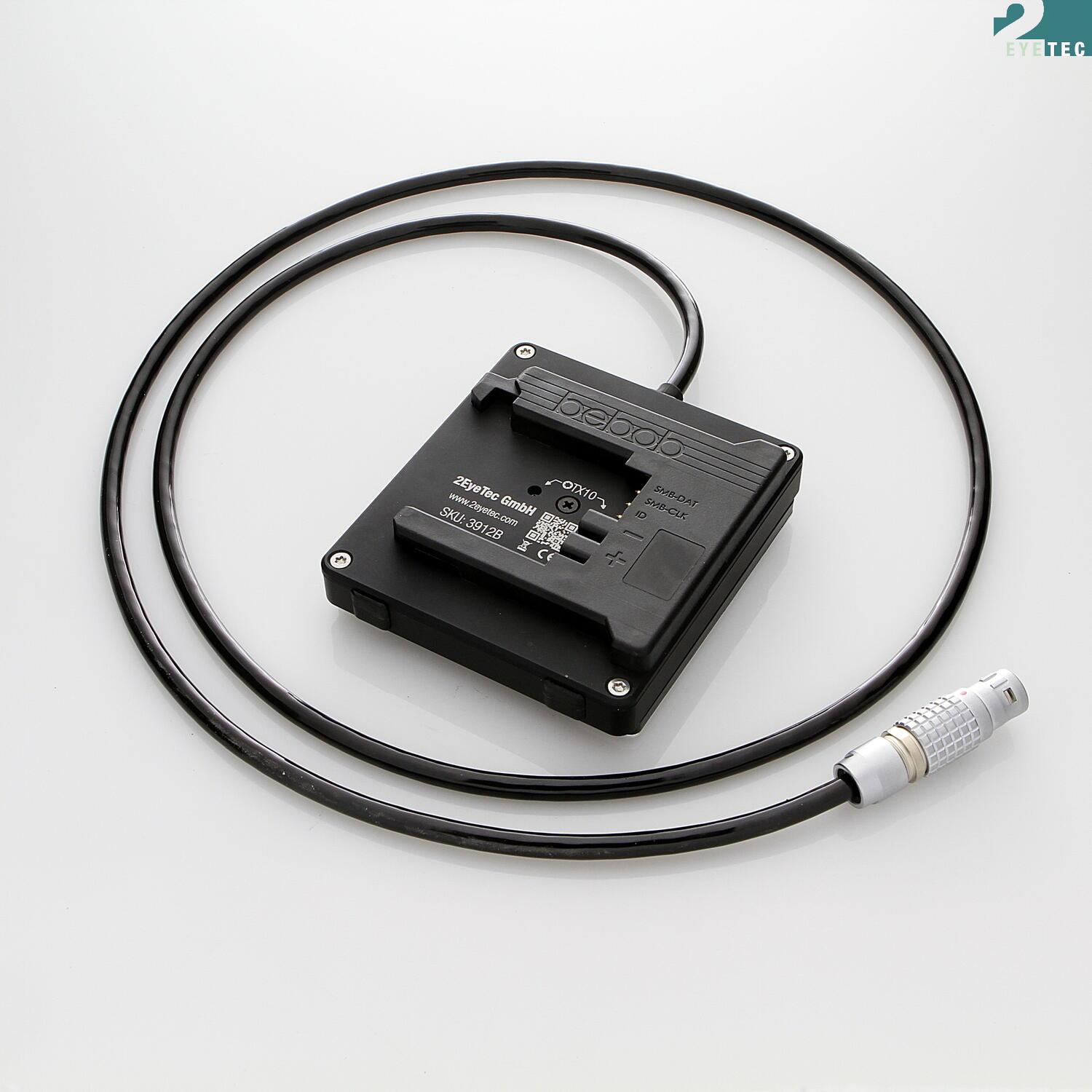

The battery plate is available with a large selection of connectors and cable lengths. The cable outlet on the plate can be placed in various positions.

The housing and mechanical parts of the V-Mount battery plates are made of black anodised, CNC-milled aluminium. They are characterised by a long service life and great compatibility with a wide range of batteries.

The plate offers a variety of mounting options: with the clip directly on your (own) belt, with the MOLLE bars on any MOLLE system or via the integrated 1/4"-20 UNC threads.

• High-quality, CNC-milled aluminium housing, black anodised
• CE, RoHS compliant
• Dimensions: 100 x 90 x 25 mm
• Weight: 0,4 - 0,7kg (depending on the cable length)
• Three possible cable outlet positions
• Large selection of output connectors, others on request
• Easy to replace cable Read more

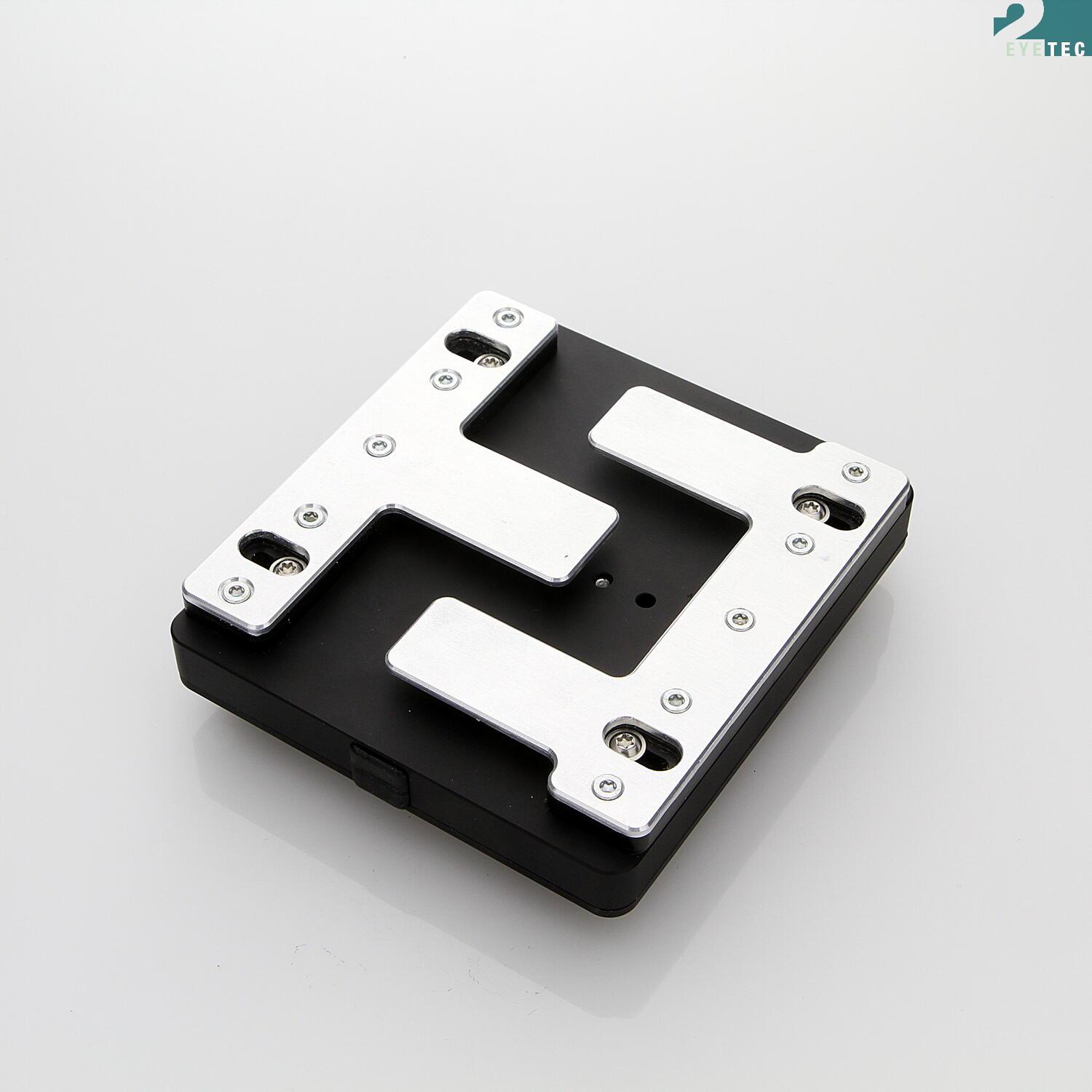

• Two mounting bars for MOLLE system Read more

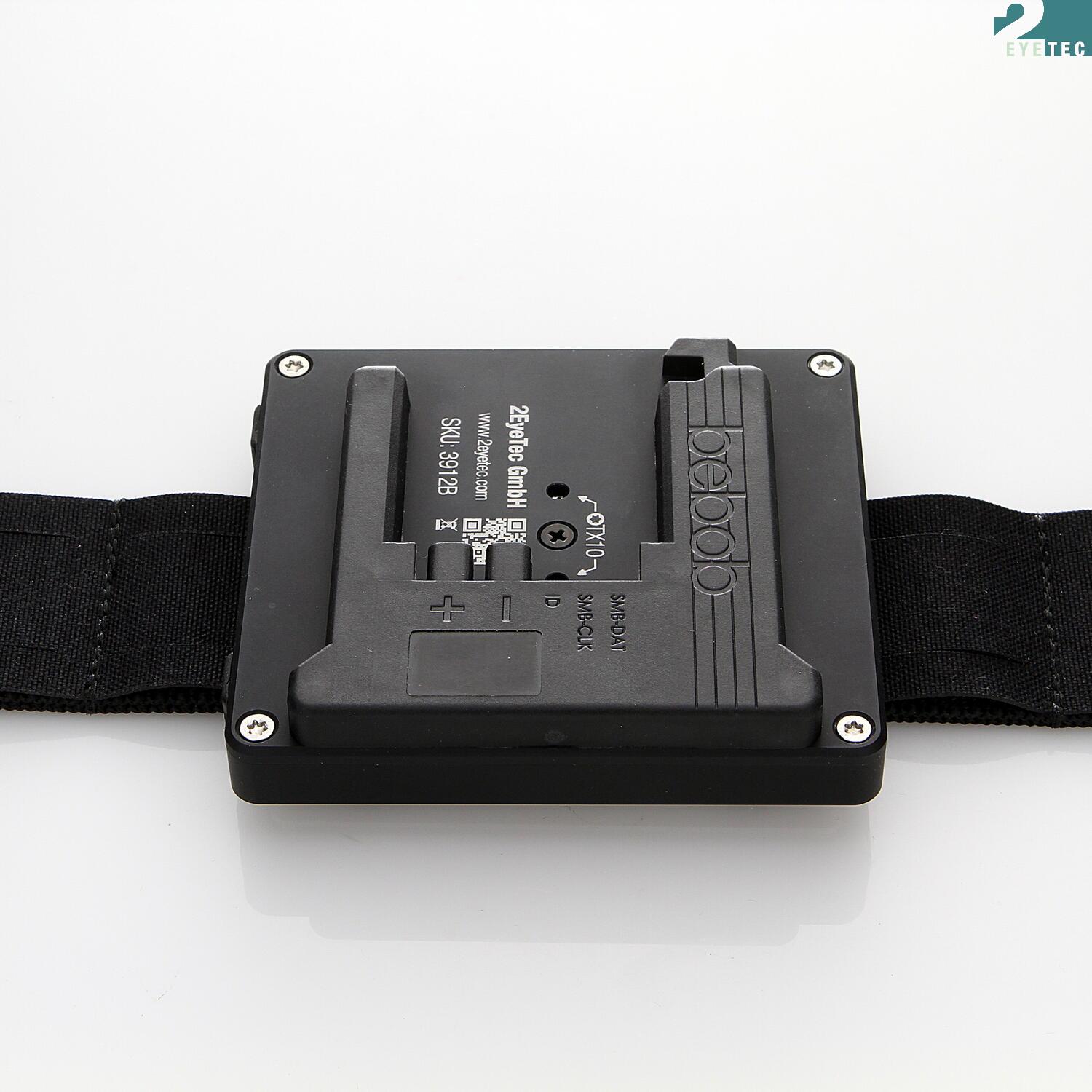

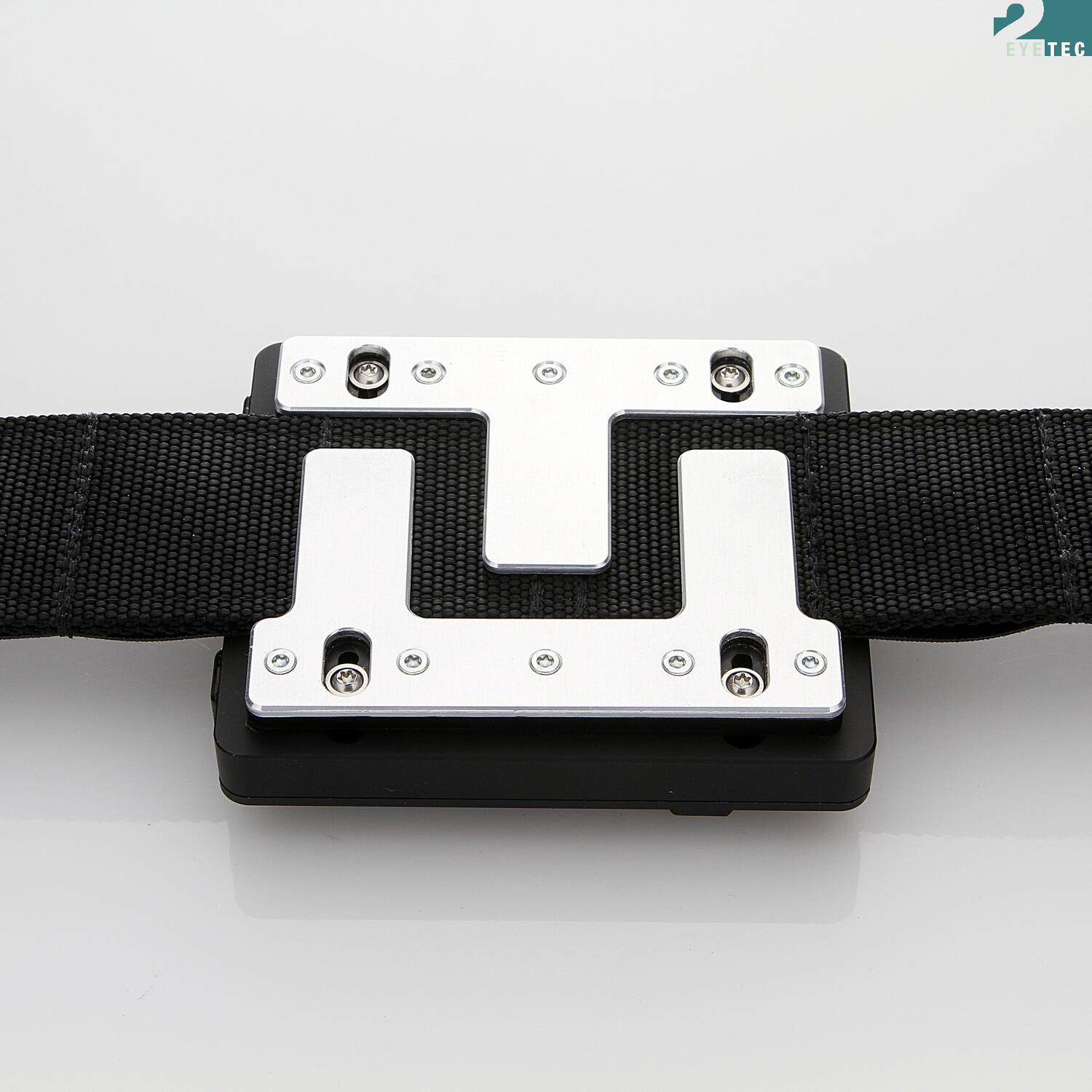

• Two-part clip for belts up to a thickness of 4 mm
• Adjustable width of the belt 42 - 54 mm
• Horizontal positioning on the belt prevents flapping when using large batteries
• four threads 1/4"-20 UNC
• Configurable cable length Read more
• ATTENTION: Output unregulated Battery Voltage Read More
