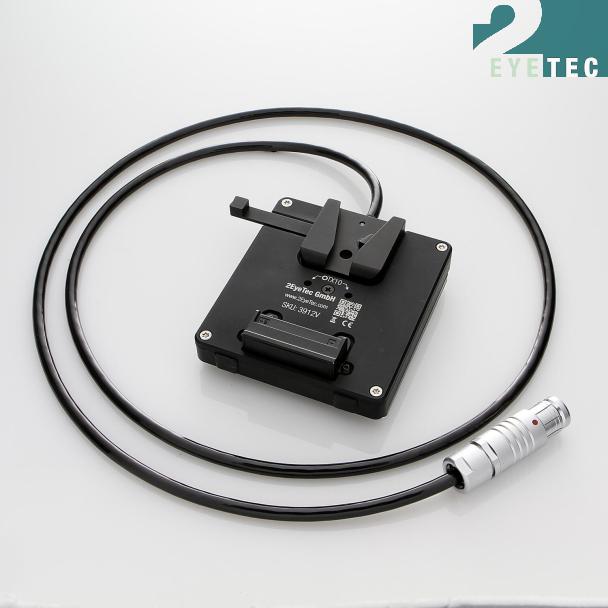

Battery Plate with fixed Cable, V-Mount → Alexa Classic


This compact battery plate can be used to operate a Arri Alexa classic reliably and safely with the V-Mount battery detached. Even though smaller batteries in the 45-150Wh range are suitable for handheld camera applications, 290Wh batteries fit our V-mount plates and are easy to carry, especially with additional padding.

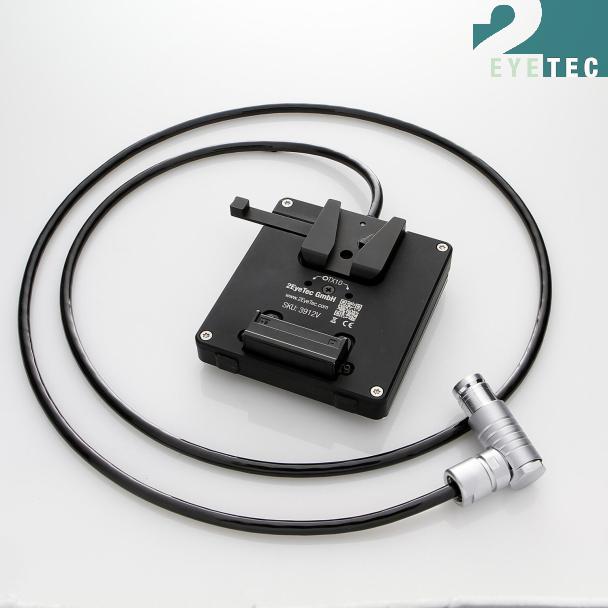

The battery plate is available with angled connector and a large selection cable lengths. The cable outlet on the plate can be placed in various positions.

The housing and mechanical parts of the V-Mount battery plates are made of black anodised, CNC-milled aluminium. They are characterised by a long service life and great compatibility with a wide range of batteries.

The plate offers a variety of mounting options: with the clip directly on your (own) belt, with the MOLLE bars on any MOLLE system or via the integrated 1/4"-20 UNC threads.

  • High-quality, CNC-milled aluminium housing, black anodised
  • CE, RoHS compliant
  • Dimensions: 100 x 90 x 25 mm
  • Weight: 0,4 - 0,7kg (depending on the cable length)
  • Three possible cable outlet positions
  • Large selection of output connectors, others on request
  • Easy to replace cable Read more
  • Two mounting bars for MOLLE system Read more
  • Two-part clip for belts up to a thickness of 4 mm
  • Adjustable width of the belt 42 - 54 mm
  • Horizontal positioning on the belt prevents flapping when using large batteries
  • four threads 1/4"-20 UNC
  • Configurable cable length Read more
  • ATTENTION: Output unregulated Battery Voltage Read More
