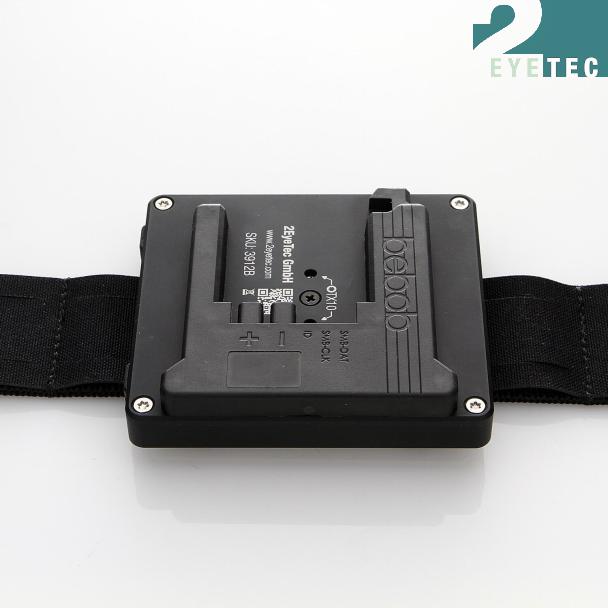

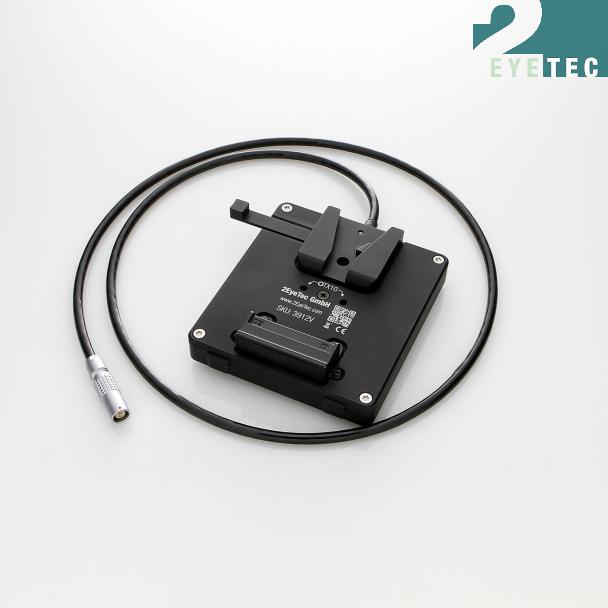

Battery Plate with fixed Cable, V-Mount → Lemo 0B.302, Cable Socket
Battery Plate with fixed Cable, V-Mount → Lemo 0B.302, Cable Socket
This compact battery plate can be used to operate devices with Lemo 2pin (0B.302) supply cable reliably and safely with the V-Mount battery detached. Even though smaller batteries in the 45-150Wh range are suitable for handheld camera applications, 290Wh batteries fit our V-mount plates and are easy to carry, especially with additional padding.
The battery plate is available with angled connector and a large selection cable lengths. The cable outlet on the plate can be placed in various positions.
The housing and mechanical parts of the V-Mount battery plates are made of black anodised, CNC-milled aluminium. They are characterised by a long service life and great compatibility with a wide range of batteries.
The plate offers a variety of mounting options: with the clip directly on your (own) belt, with the MOLLE bars on any MOLLE system or via the integrated 1/4"-20 UNC threads.
- Lemo 2pin cable socket with "female" contacts (PHG.0B.302.CLLD)
- High-quality, CNC-milled aluminium housing, black anodised
- Dimensions: 100 x 90 x 25 mm
- Weight: 0,4 - 0,7kg (depending on the cable length)
- Three possible cable outlet positions
- Easy to replace cable Read more

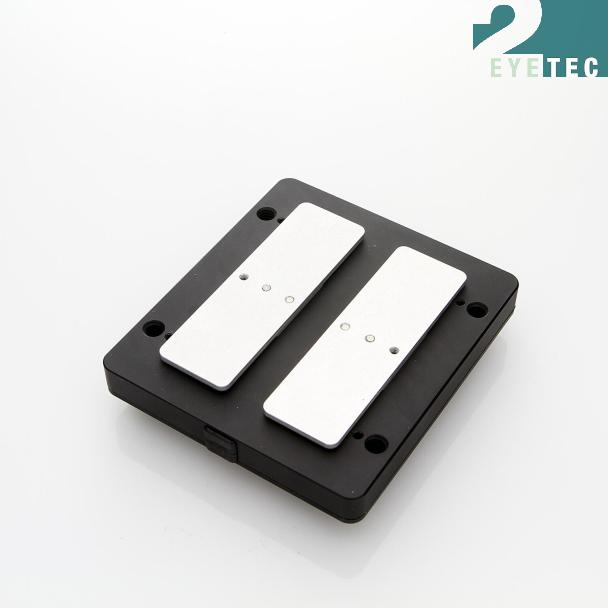

- Two mounting bars for MOLLE system Read more

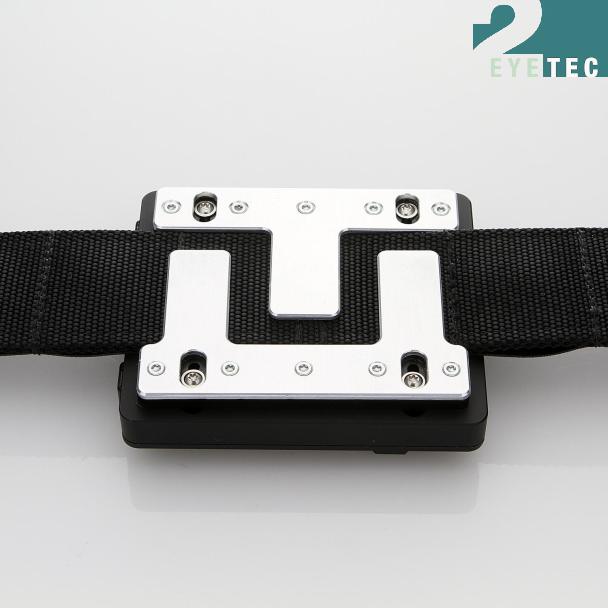

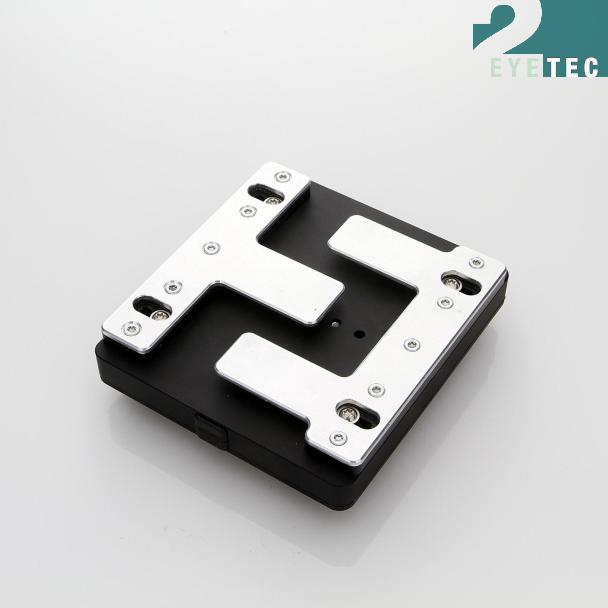

- Two-part clip for belts up to a thickness of 4 mm
- Adjustable width of the belt 42 - 54 mm
- Horizontal positioning on the belt prevents flapping when using large batteries
- four threads 1/4"-20 UNC
- Configurable cable length Read more
- ATTENTION: Output unregulated Battery Voltage Read More
Battery | V-Mount |
---|---|
Delivery Time | ca. 2-3 days |
