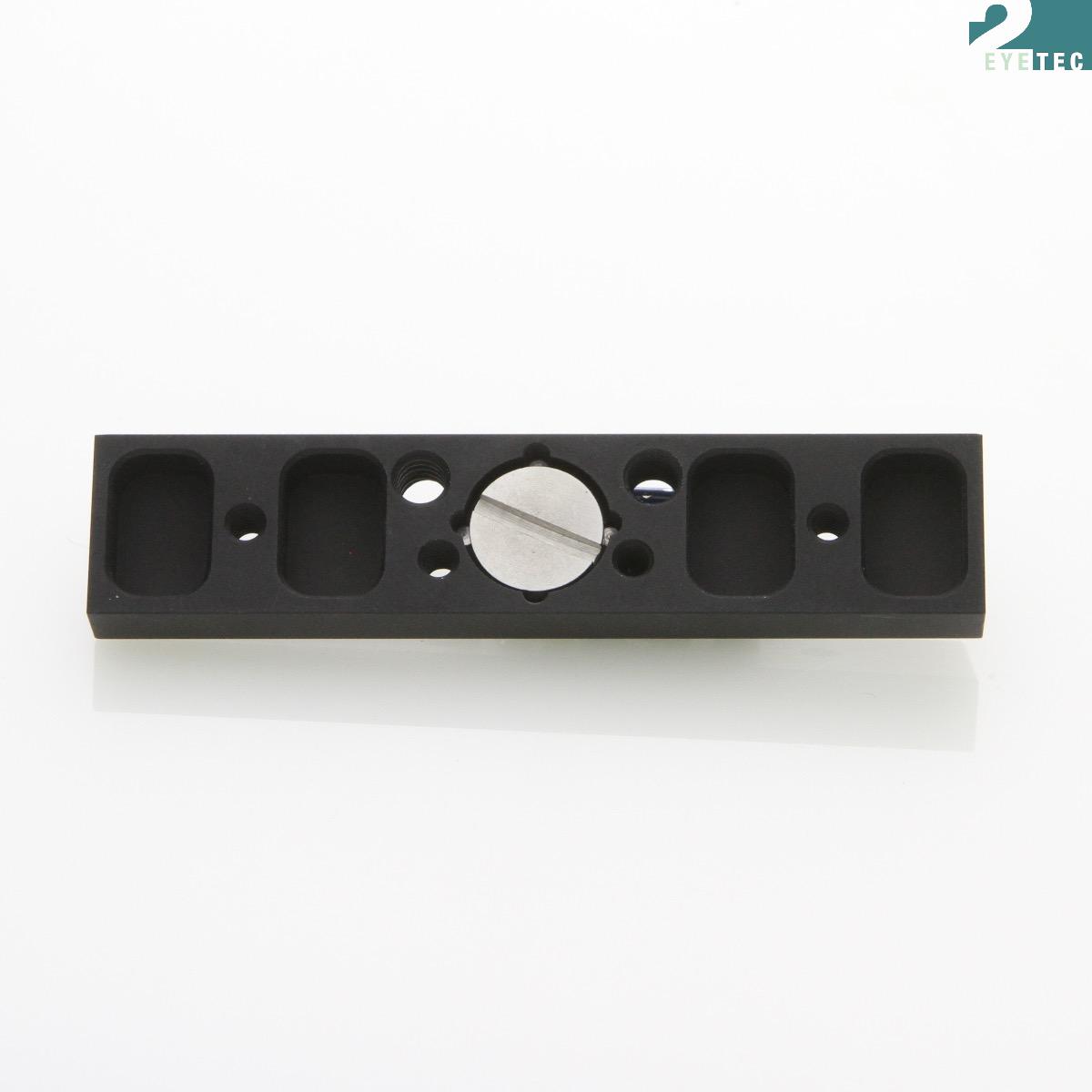

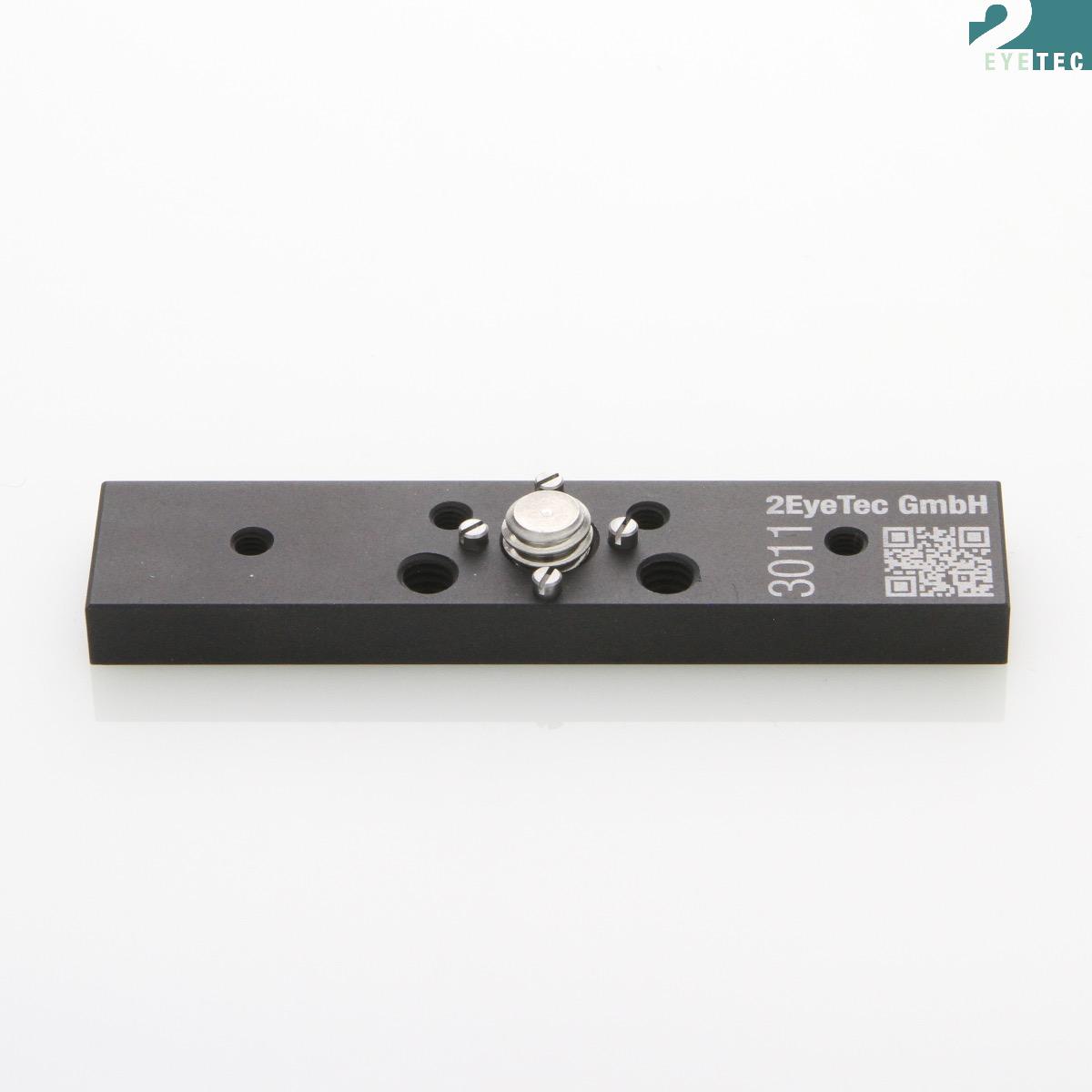

Bracket for ARRI CSS Clamp Bridge 52

Bracket for mounting various Accessories to a ARRI CSS Clamp Bridge 52

Mating with ARRI CSS Clamp Bridge 52 (K2.0042837)

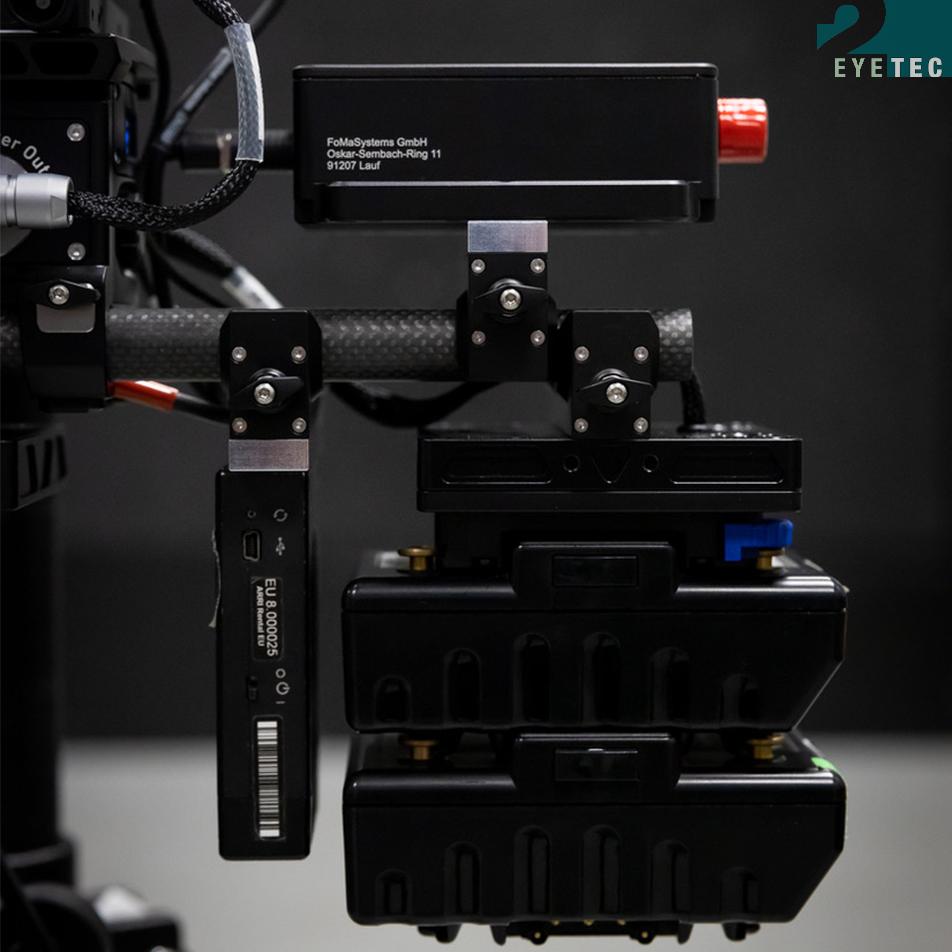

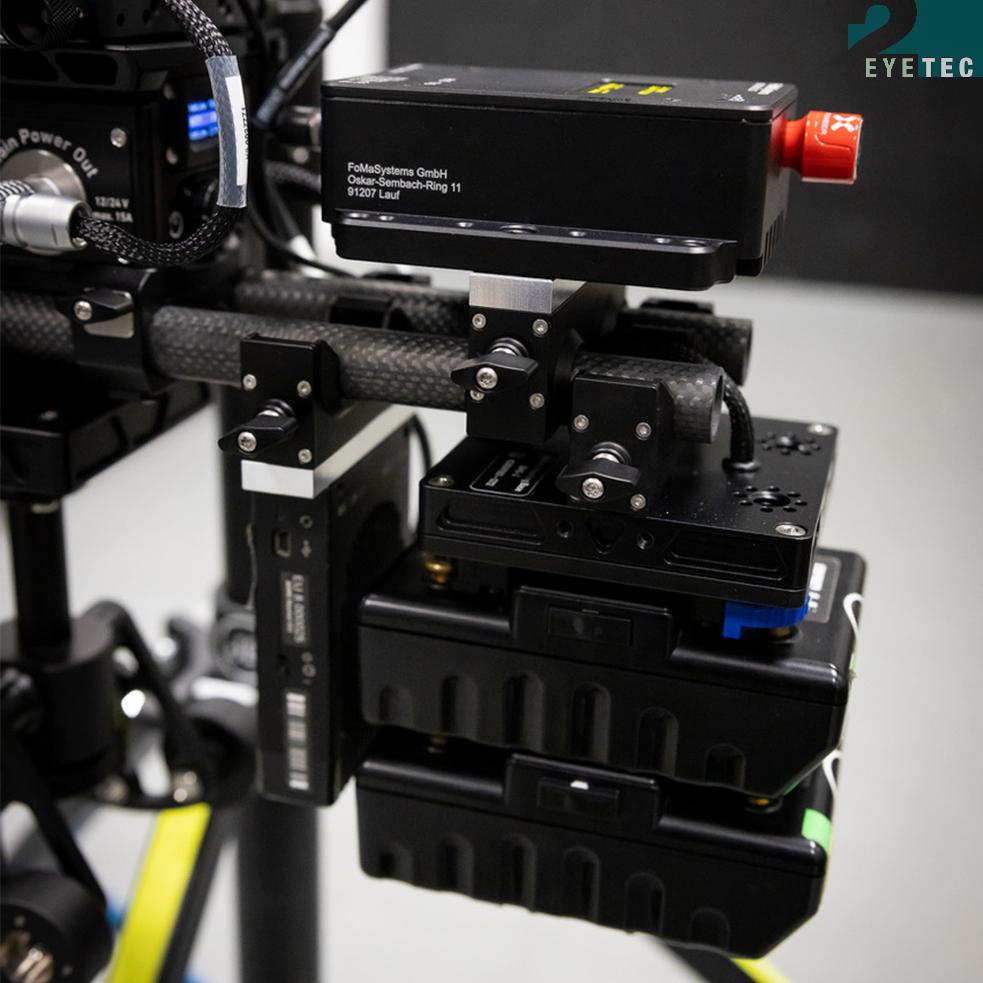

• Compatible with FOMA Systems ERM-2400, 2EyeTec Teradek Bracket and various devices with 3/8"-16 UNC Thread with Locating Pins
• 2x 1/4"-20 UNC threaded Holes with a distance of 24mm
• 2x M4 threaded Holes with a distance of 20mm
• 1x 3/8"-16 UNC Screw with removable locating Pins
• CNC milled Aluminium, anodized black
• Including a 3/8"-16 UNC Screw with 9mm and 14mm length
• Dimensions (WxDxH): 90 x 20 x 8mm, Weight: 30g
